Sound _ Psychoacoustics

The decibel is commonly used to quantify sound levels relative to some 0 dB reference.

The reference level is typically set at the threshold of human perception.

A reason for using the decibel is that the ear is capable of detecting a very large

range of sound pressure.

The smallest sound that human can hear is 20x10-6 Pascal.

The ratio of the sound pressure that causes permanent damage from short exposure

to the limit that (undamaged) ears can hear is above a million. Because the power in

a sound wave is proportional to the square of the pressure, the ratio of the maximum

power to the minimum power is above one trillion.

To what degree do we hear?

- 20Hz ~ 20 kHz

- From the smallest sound we can hear (0dB) to the range where we feel

   ‘physical pain’ (130dB)

- The increase by 6dB means the double of sound pressure.

   However, doubling the subjective loudness needs 10 dB increase.

   Human perception can recognize from at least 3dB change.

- The subjective loudness or the loudness human can perceive is dependent

   on several complicated factors.

- One of them is that human ears are not equally sensitive to the intensity of sound

    in all the frequency. They are the most sensitive around 2~5kHz.

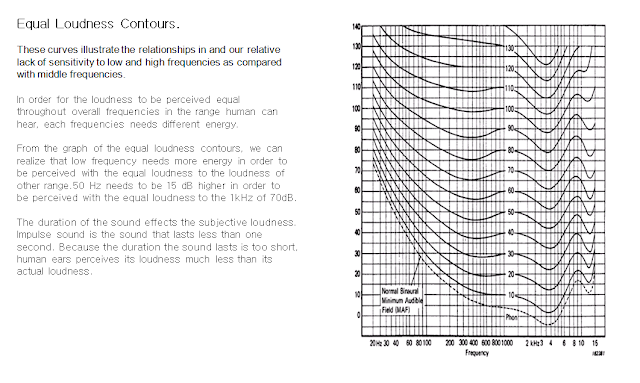

Equal Loudness Contours.

These curves illustrate the relationships in and our relative lack of sensitivity

to low and high frequencies as compared with middle frequencies.

In order for the loudness to be perceived equal throughout overall frequencies

in the range human can hear, each frequencies needs different energy.

From the graph of the equal loudness contours, we can  realize that low frequency

needs more energy in order to be perceived with the equal loudness to the

loudness of other range.50 Hz needs to be 15 dB higher in order to be perceived with

the equal loudness to the 1kHz of 70dB

Hass Effect

- When two identical sounds from different directions arrives at human ears

  with a very short time interval, the sound that arrived later is masked by the

  sound that arrives previously.

- The Direction of sound source is decided according to the direction of

   the sound arrived ahead to ears.
